Product Details
Product Details

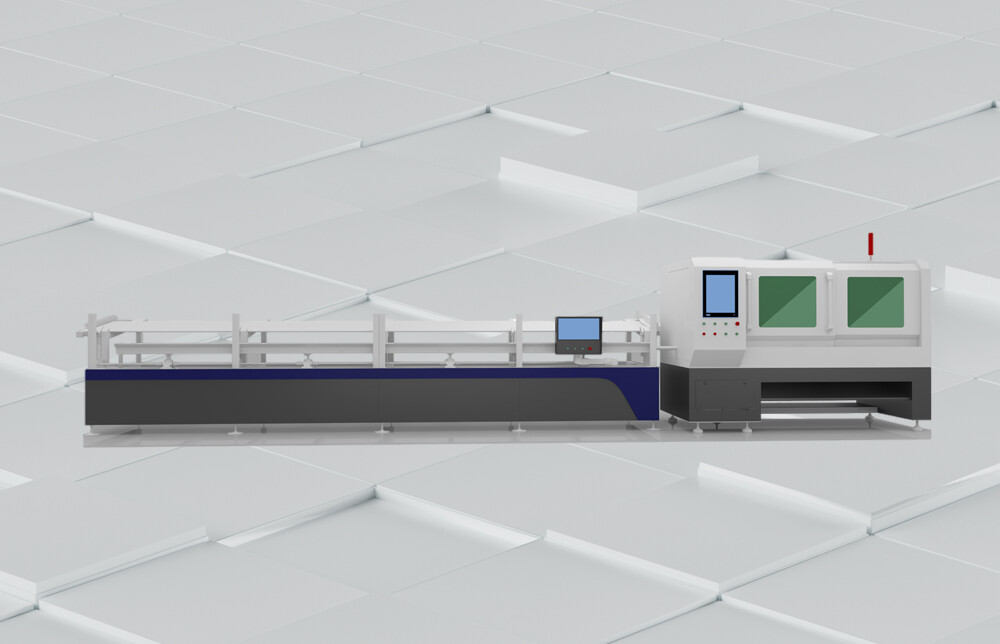

| Fast cutting speed: 6080HS series is specially developed for small tube, thin tube laser cutting machine, with fast speed, high efficiency, short tail, cutting stability and other characteristics. Equipped with automatic loading rack, one-key cutting, no manual intervention, cost reduction and efficiency. Suitable for fitness equipment, medical equipment, metal furniture, handguard rail and other industries. |

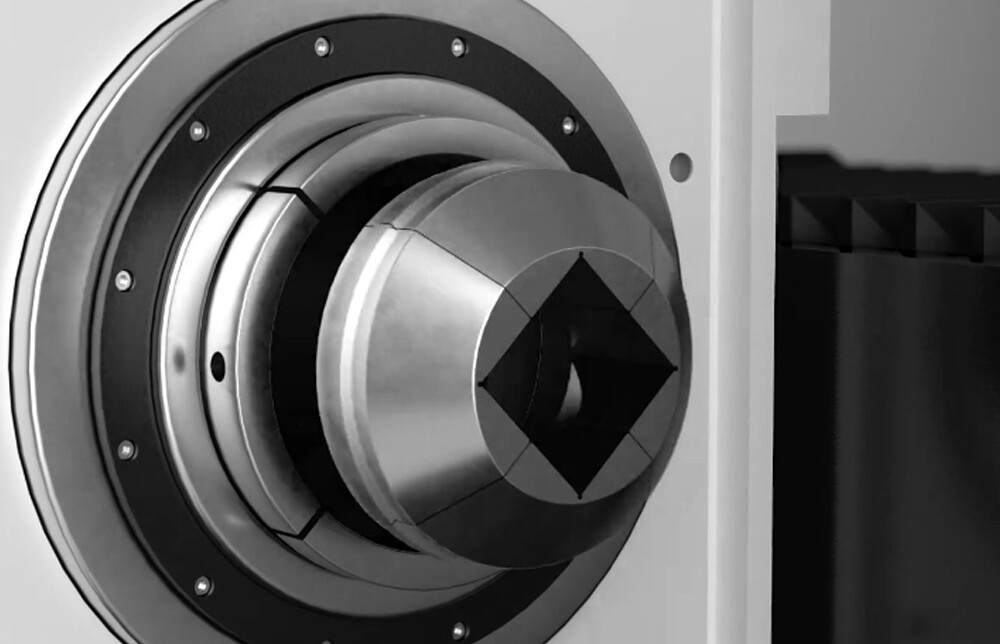

Fully pneumatic chuck：
Standard full pneumatic chuck for small tube, high speed, large clamping force, fast response time.provide special OEM service,according your pipe size to OEM machine working size.
|
|

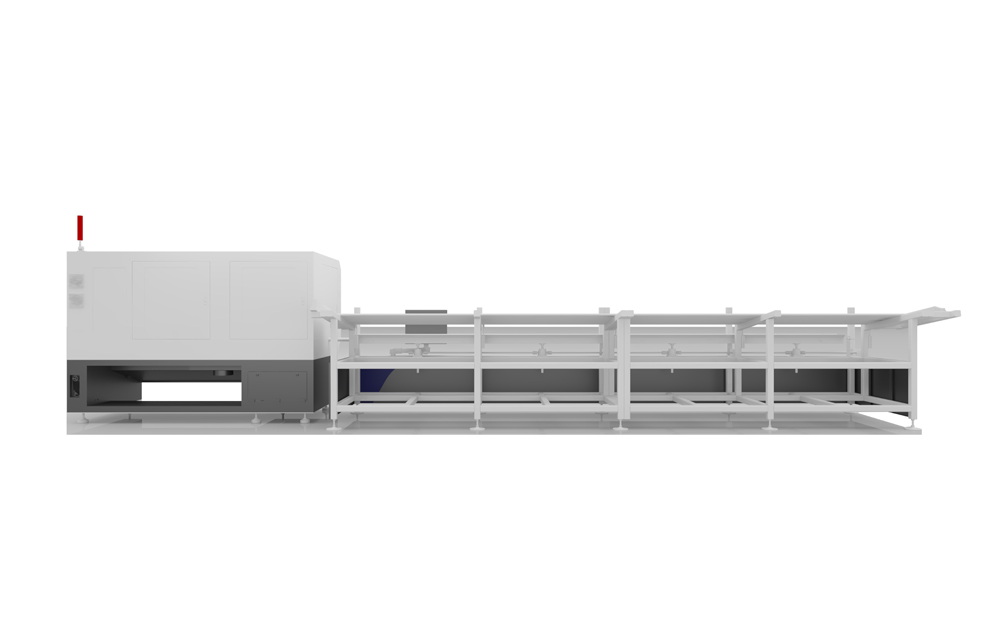

| Fully automatic loading： The automatic feeder can automatically complete the tasks of feeding and cutting, reducing manual intervention and improving production efficiency. At the same time, the automatic feeder runs very fast, which can greatly shorten the production cycle, reduce labor costs, improve production efficiency and quality, and reduce production costs. |
Laser Head： BOCI BLT series cutting head is a cost-effective intelligent cutting head. It is not only small in size and light in weight, but also has multiple sets of intelligent sensors integrated inside the cutting head, real-time closed-loop intelligent monitoring, rapid diagnosis and timely warning. It has anti-collision protection function, which can quickly recover after collision, simplify the maintenance process and reduce maintenance costs. Protective mirror temperature detection, real-time monitoring of the protective mirror temperature during cutting, when the protective mirror is contaminated, the system will stop the light and alarm in time, effectively reducing the poor cutting caused by protective mirror contamination Standard air pressure sensor, more precise gas control, more stable cross-section quality; open air protection to avoid lens explosion; one-button intelligent calibration of air pressure, more convenient and worry-free replacement of nozzles/processes. |
|

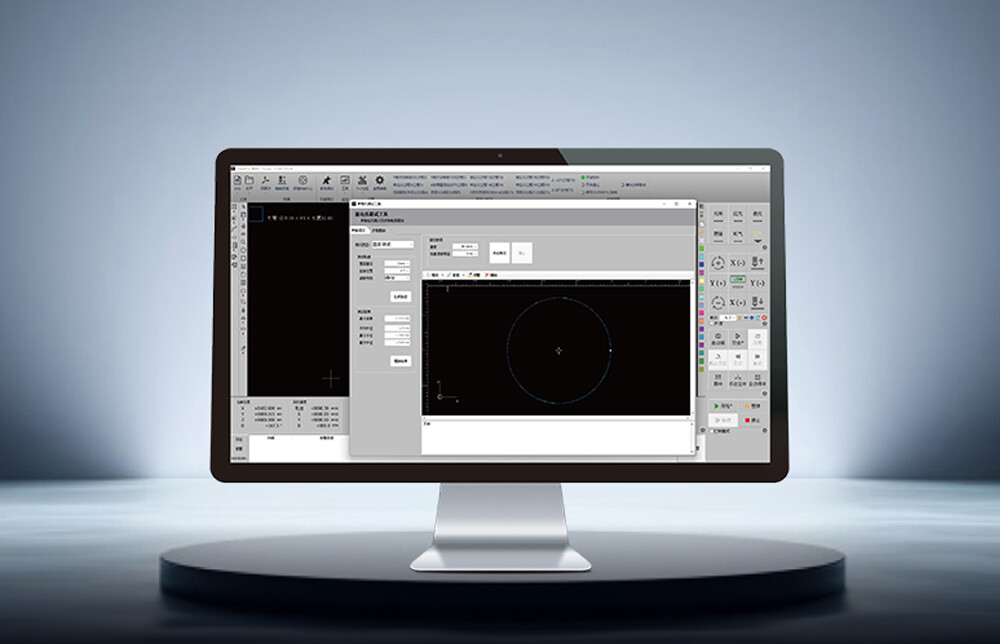

| Control system: Cypcut 3000 system is a professional cutting software for processing various types of pipes. It is perfectly connected with the nesting software Tubest, which realizes the nesting, common edge, basic process and special process processing of parts. After exporting the processing file, you can directly use TubePro for cutting. It has an error measurement function. By comparing the command trajectory with the feedback trajectory, it is convenient for the debugging personnel to judge the difference in the servo gain of each spindle, so as to ensure the motor motion accuracy and the actual accuracy of the workpiece. Special steel centering supports L steel, channel steel, I-beam and other special steel centering to improve the cutting accuracy of special steel. |
Technical Parameters
Technical Parameters
| Model | GX-6024HS | GX-6080HS |
| Laser Power | 1000W/1500W/2000W/3000W,ect | 1000W/1500W/2000W/3000W,ect |
| Working Size | 6000mm | 6000mm*80mm diameter |
| Positioning Accuracy | ±0.03mm | ±0.03mm |
| Repositioning Accuracy | ±0.02mm | ±0.02mm |
| Max Acceleration | 1.2G | 1.2G |
| Max Movement Speed | 60m/min | 120m/min |
