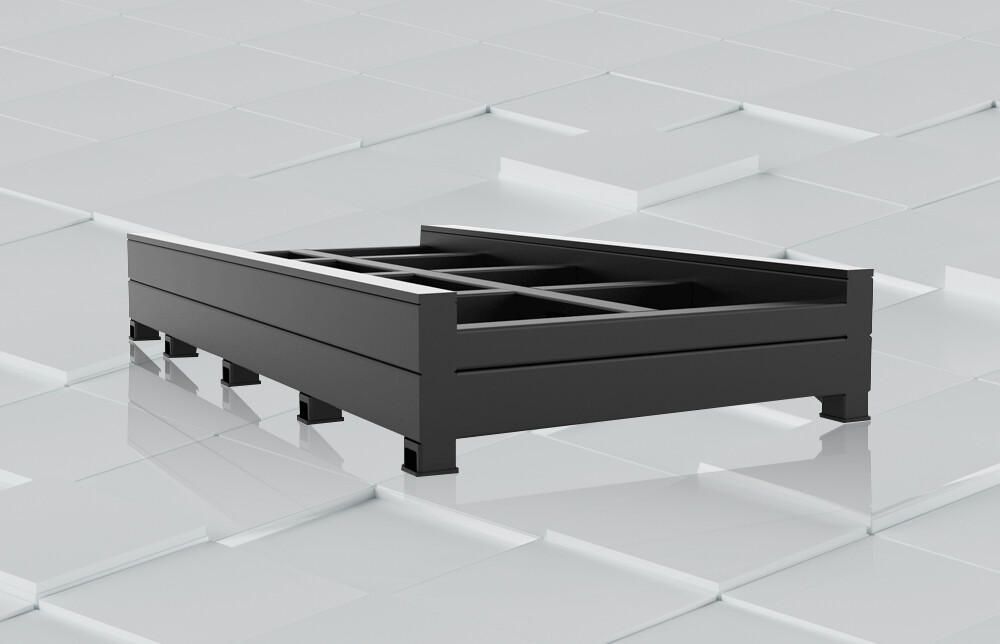

| Heavy industrial machine bed: Heavy duty bed,High strength carbon steel sheet with low thermal,stable and significant wear resistance. Technology borrowed from leading European manufacturers production of Mortise-and-Tenon Joint beds. All seams in the manufacture of the frame are welded on both sides,no residual stresses in welded elements, high reliability to vibration, shock, dynamic and temperature loads. Modular desktop design completely eliminates thermal deformations that can occur from heating during intensive work of the laser. |

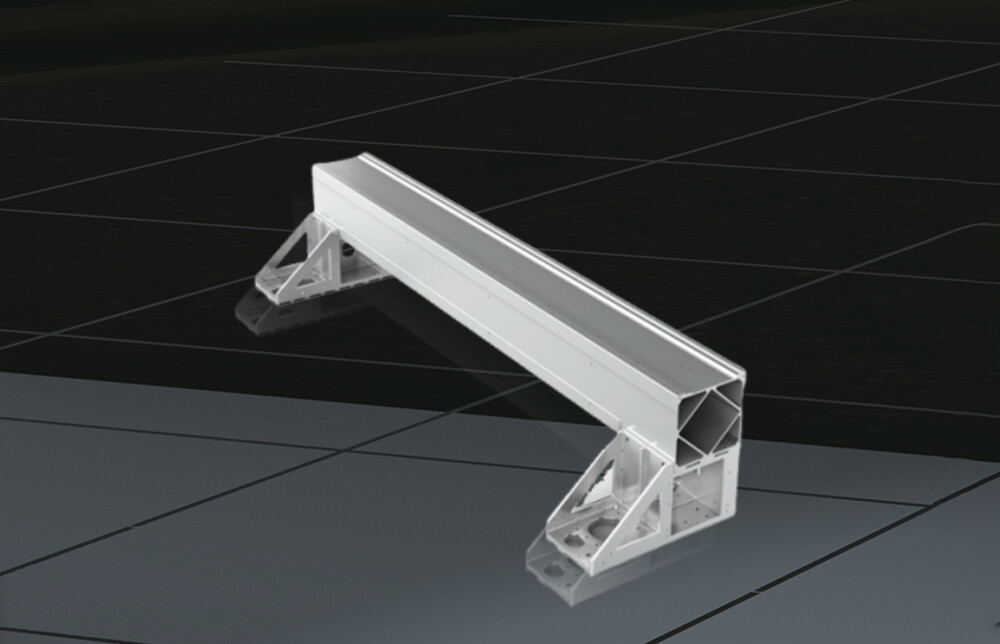

Cast aluminum gantry： High precision. After artificial aging, solution treatment and finishing, the beam has good integrity, rigidity, toughness and ductility. High speed. Aluminum has the metal characteristics of light weight and strong rigidity, which is conducive to high-speed movement during processing, and high flexibility is conducive to high-speed cutting of various graphics on the basis of high precision. High efficient. The light beam can ensure the fast operation of the equipment, improve the processing efficiency and ensure the processing quality at the same time. |
|

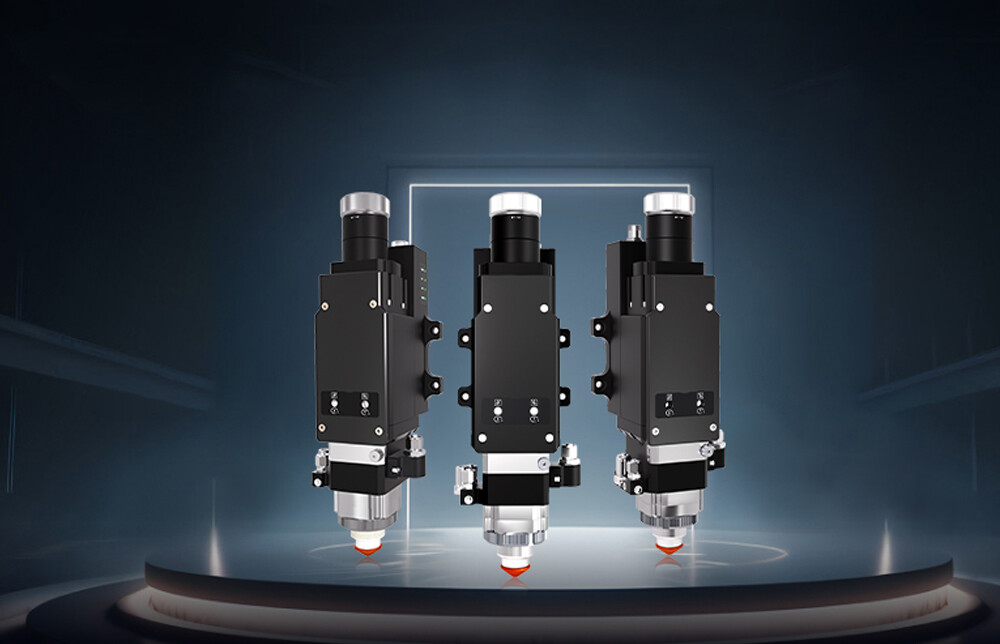

| Boci cutting head:
It has anti-collision protection function, which can quickly recover after collision, simplify the maintenance process and reduce maintenance costs. Protective mirror temperature detection, real-time monitoring of the protective mirror temperature during cutting, when the protective mirror is contaminated, the system will stop the light and alarm in time, effectively reducing the poor cutting caused by protective mirror contamination Standard air pressure sensor, more precise gas control, more stable cross-section quality; open air protection to avoid lens explosion; one-button intelligent calibration of air pressure, more convenient and worry-free replacement of nozzles/processes.
|

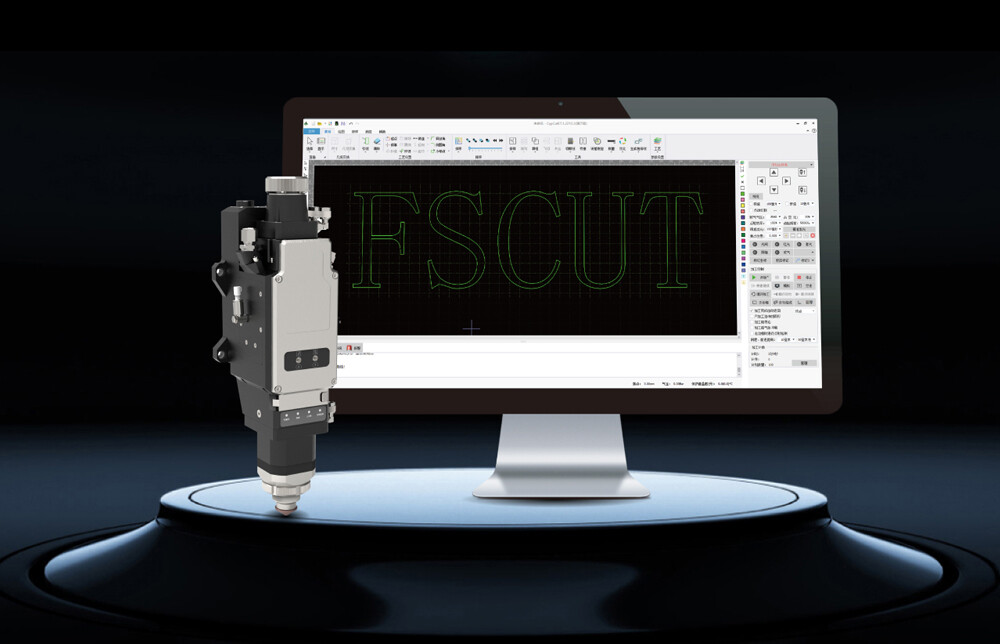

Cypcut control system: CypCutE sheet cutting software is mainly used for medium power bus cutting system. Easy to install, simple to debug, excellent performance, complete solutions, CypCutE inherits the consistent style of CypCut software, easy to use, rich in functions, stable and reliable. The software has built-in nesting function, and more advanced functions such as "traceless micro-joining", "inductive perforation", "disc centering" to meet various processing needs.It is suitable for advertising machines, sheet metal processing and other industries. |
|

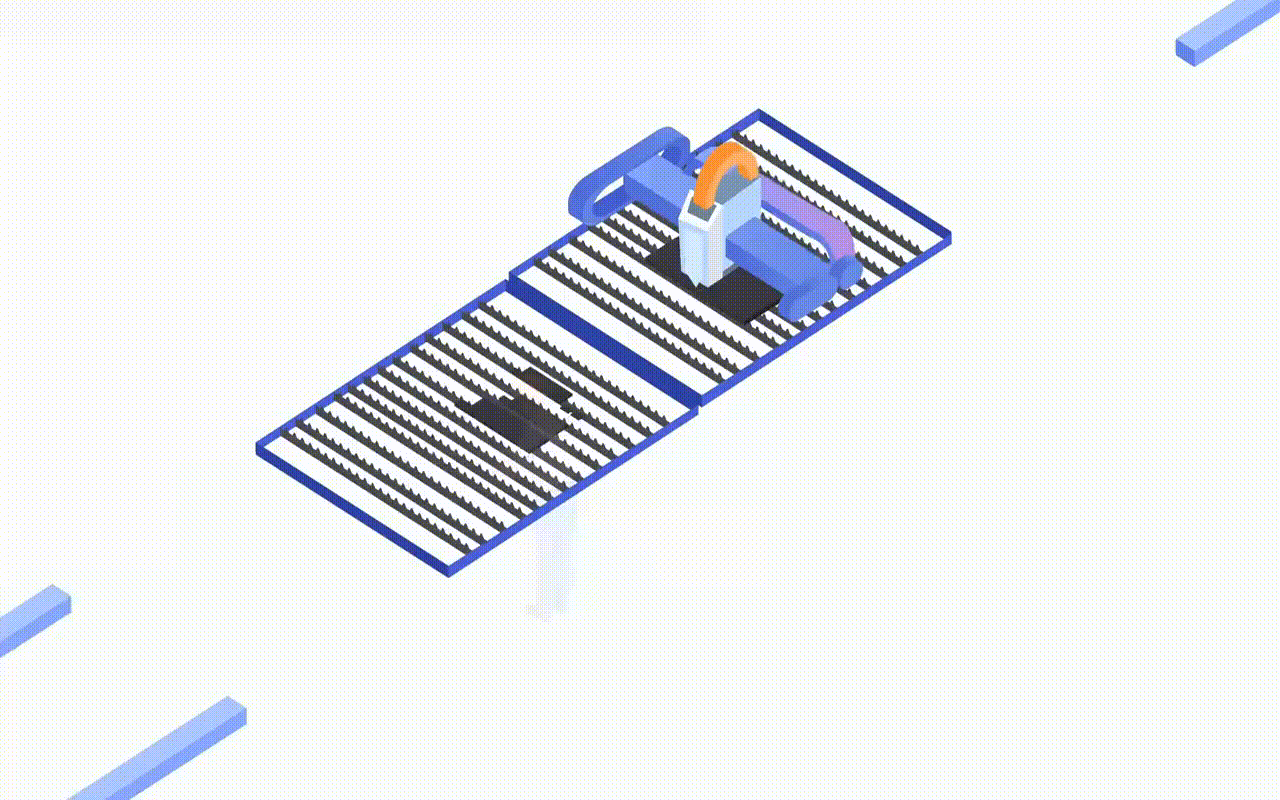

| Improve production efficiency: The interchangeable platform laser cutting machine has two worktables, which can be exchanged for processing during operation. When one worktable is cutting, the other worktable can be unloading and loading at the same time. Convenient loading and unloading: Due to the existence of two worktables, it is very convenient to load and unload materials at the same time. Usually only 2-3 operators are needed to complete product production and processing. |
The outer cover design can prevent cutting sparks from flying and reduce fire hazards. The fully covered sheet metal shell reduces the floating dust and dust generated by cutting, making the cutting process more environmentally friendly, smoke-free and pollution-free. The dark acrylic window allows the operator to clearly see the actual cutting situation while preventing the light source from causing damage to the eyes. |
|
Technical Parameters
Technical Parameters
| GX-3015C | GX-4020C | GX-6020C | GX-6025C | |
| Working Area | 3000*1500mm | 4000*2000mm | 6000*2000mm | 6000*2500mm |
| Positioning Accuracy | ±0.05mm | ±0.05mm | ±0.05mm | ±0.05mm |
| Repositioning Accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.05mm |
| Max Movement Speed | 150m/min | 150m/min | 150m/min | 150m/min |
| Laser Power | 1500W-30000W | 1500W-30000W | 1500W-30000W | 1500W-30000W |
| Max Acceleration | 1.5G | 1.5G | 1.5G | 1.5G |
